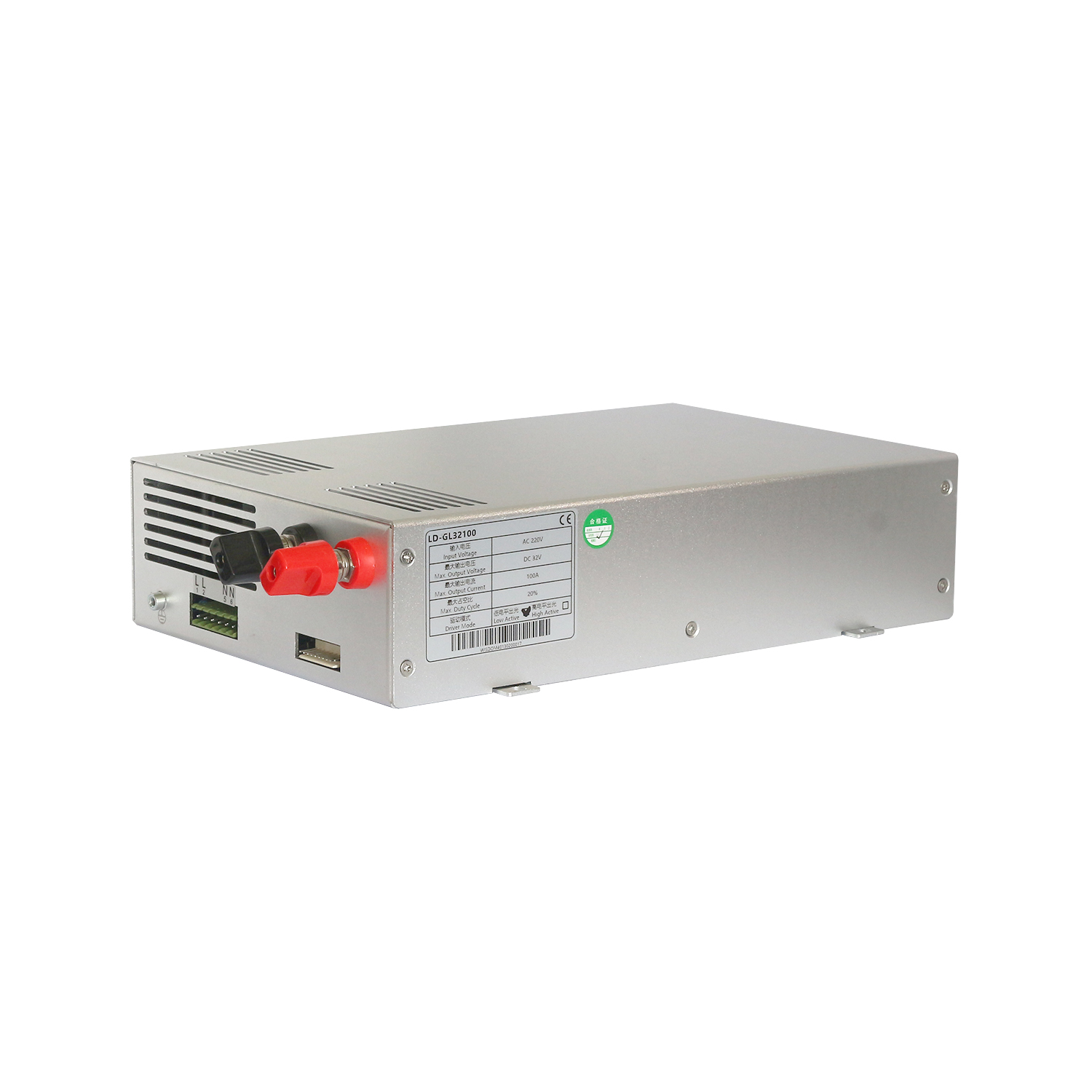

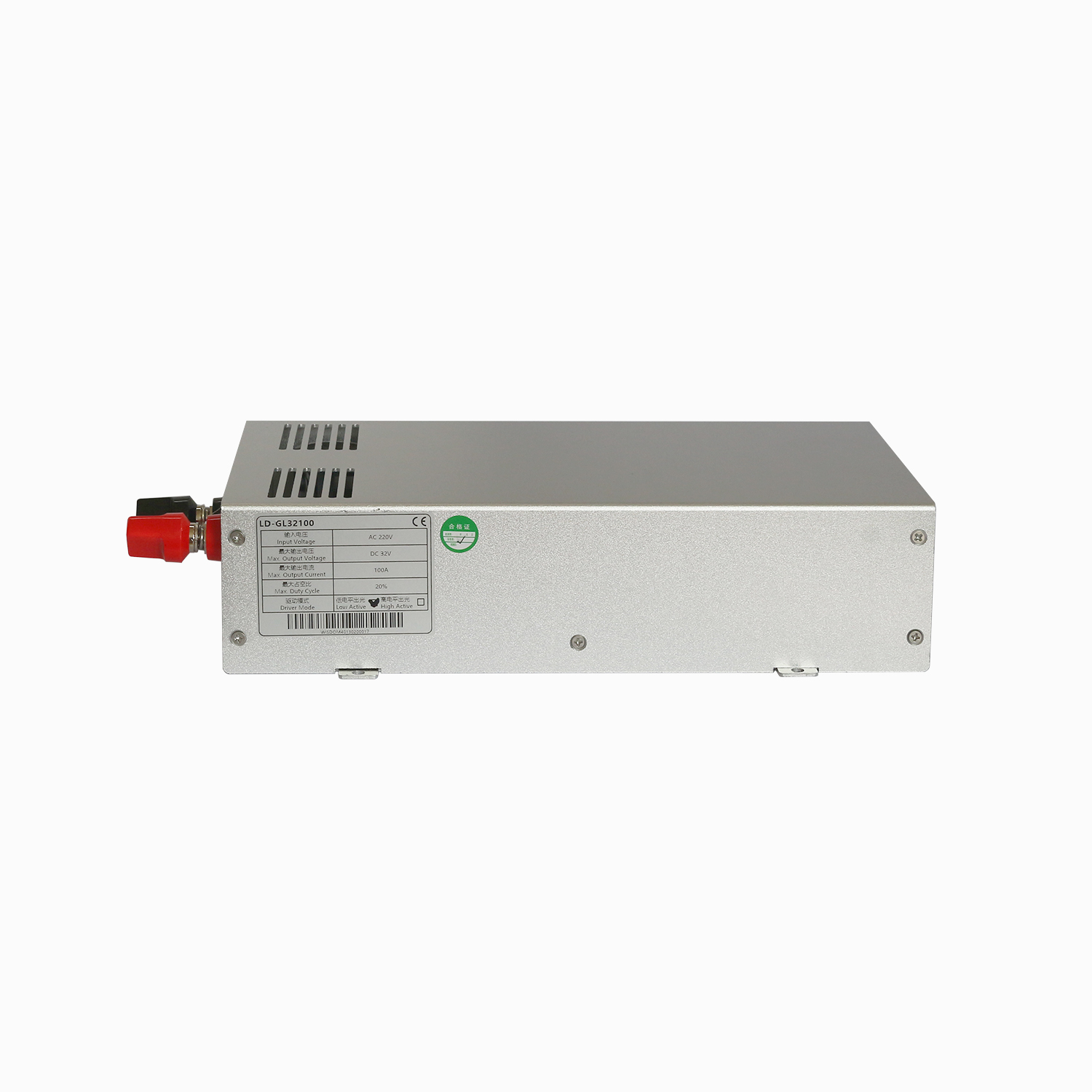

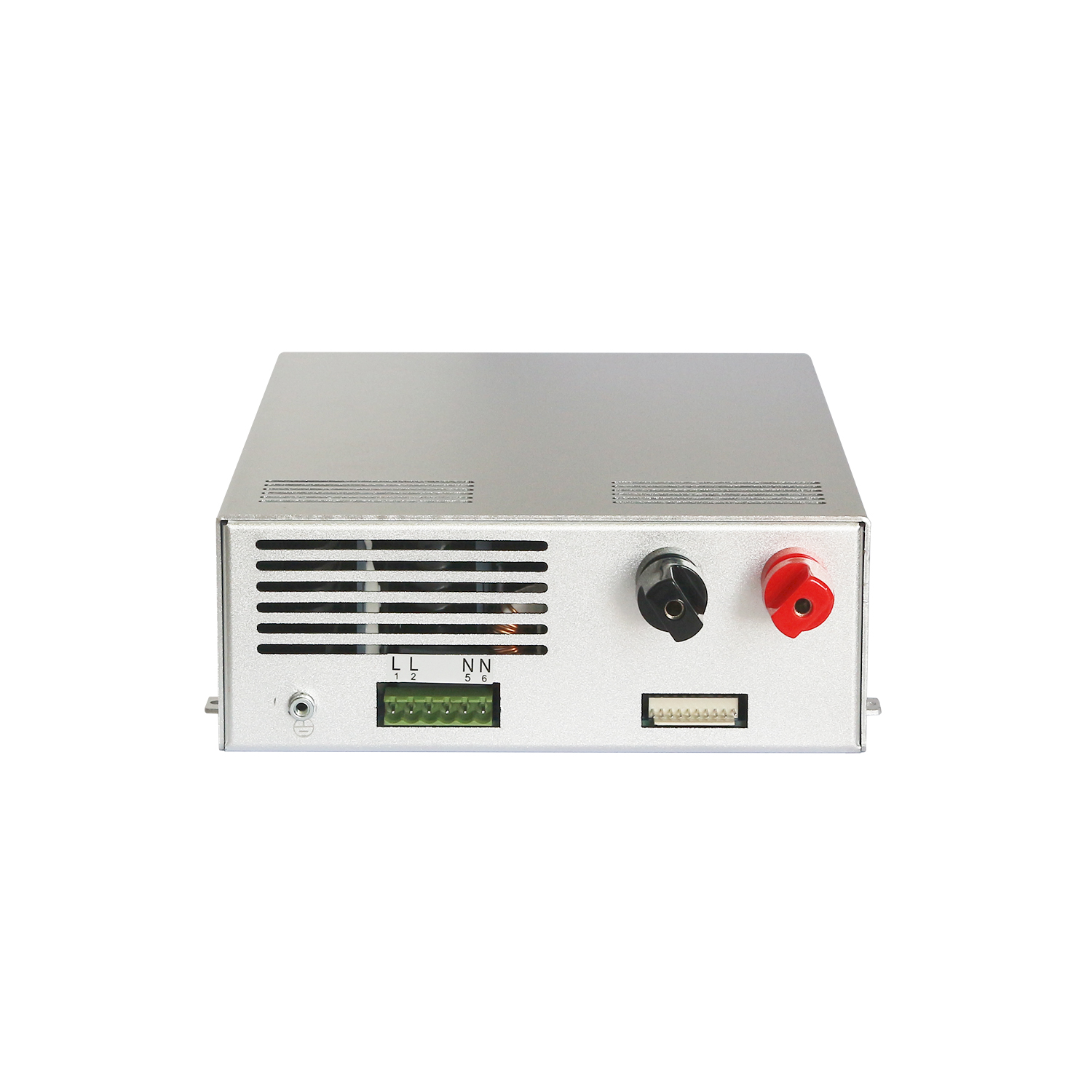

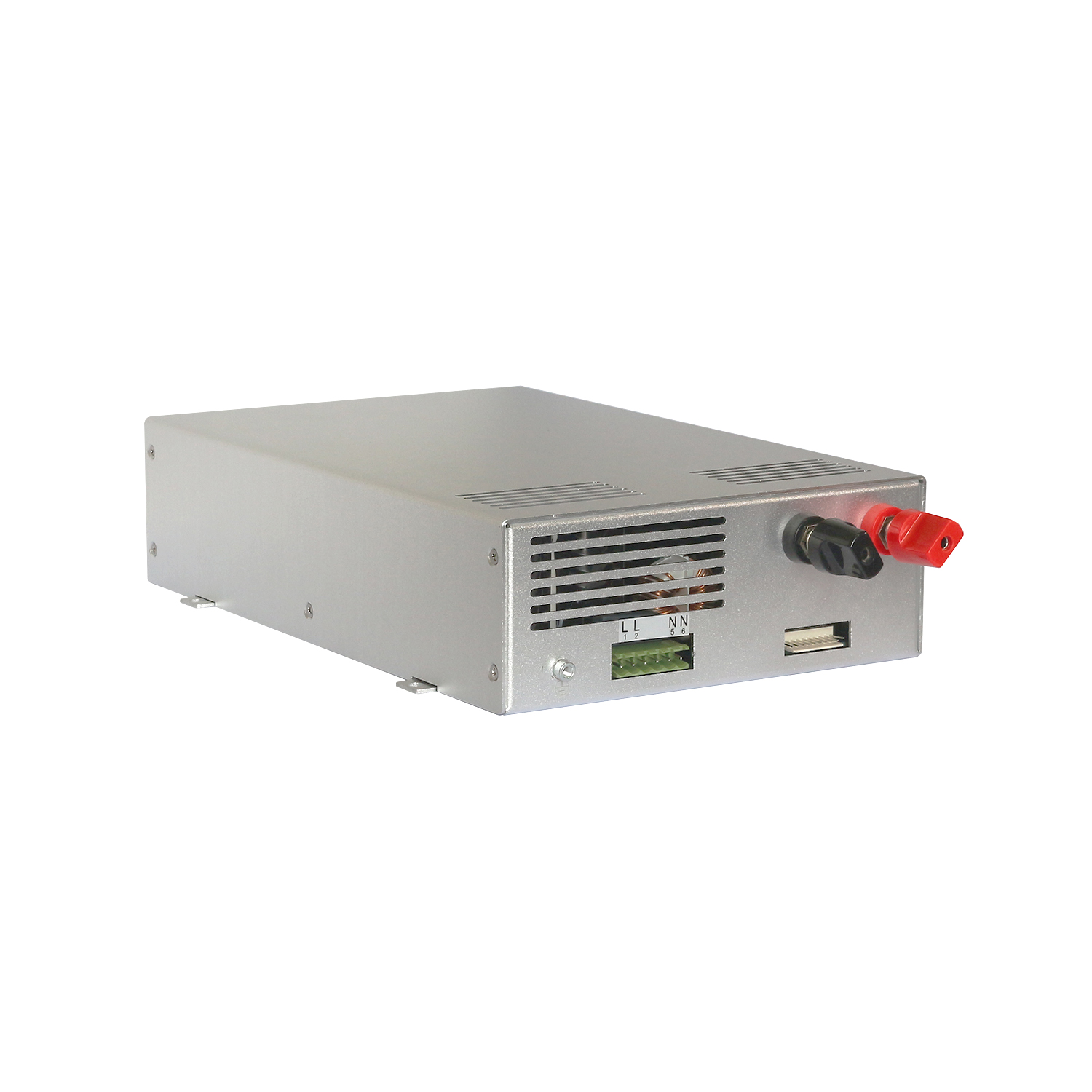

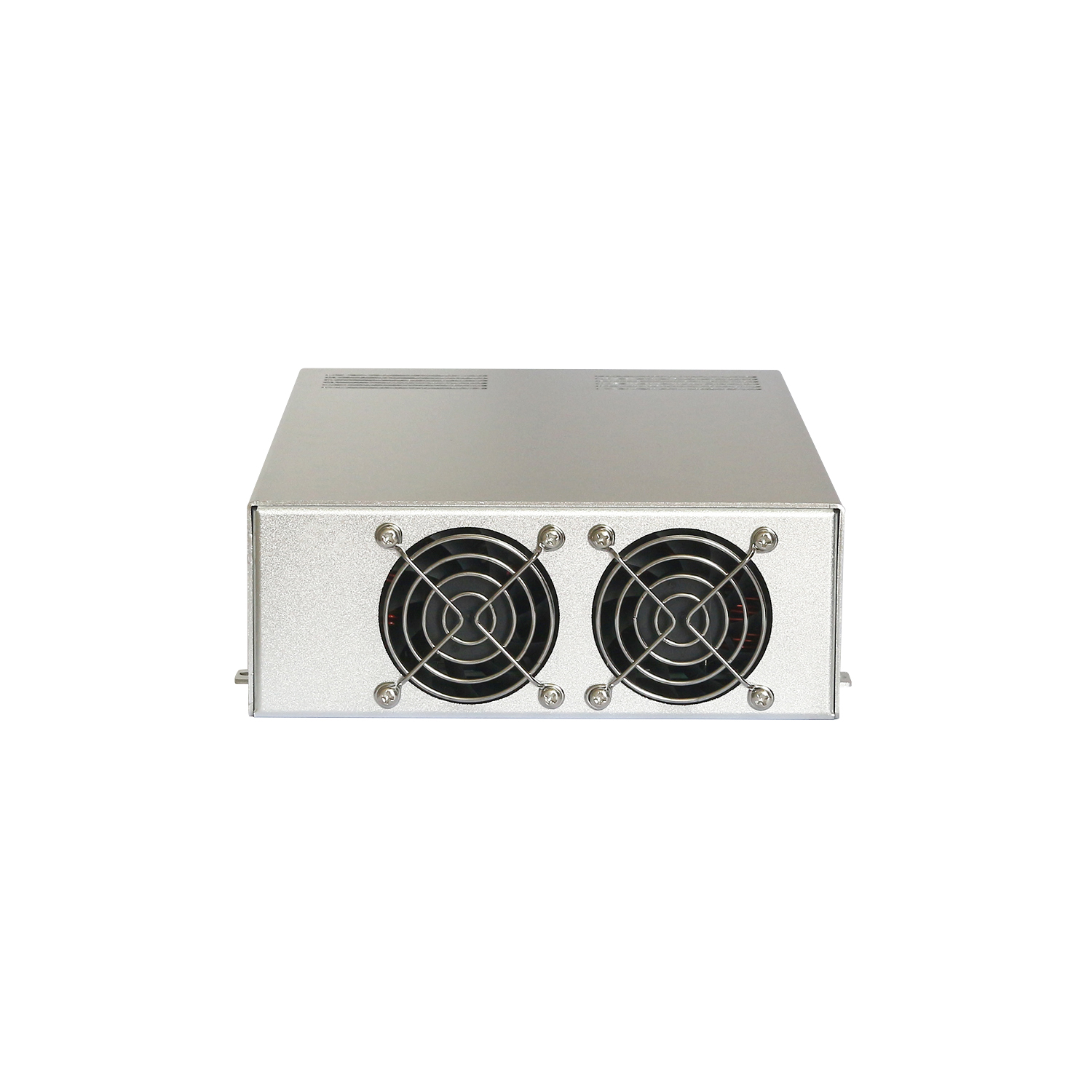

100A32V frosted aluminum shell
Full bridge power supply, Efficient and stable, can work for a long time
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Detailed Description
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Technical data
| Model | LD-GS32100 / LD-WS32100 |
| Input Voltage | G--220V / W--110V AC 50Hz(±10%) |
| Output Voltage | 15~32V |
| Output Current | 0~100A |
| Output Power | Maximum 3200W |
| Number of bars | 8~16 |
| Laser Power | 800~1600W |
| Output current Duty cycle | Maximum 20% |
| Circuit Protection | Over current protection, temperature protection |
| Size (L x W x H) | 324.2*183*103.6mm |
| Weight | 5.1kg |
