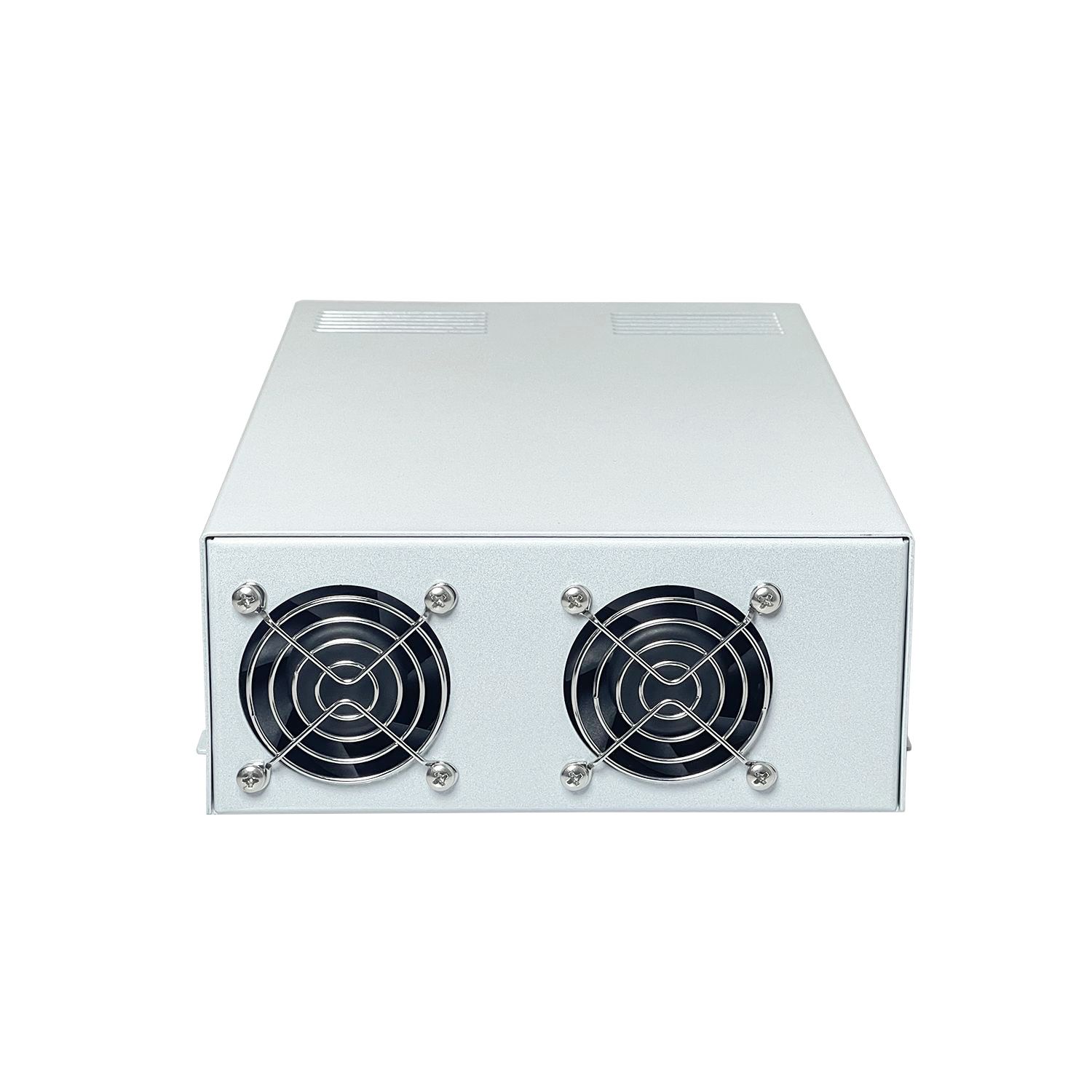

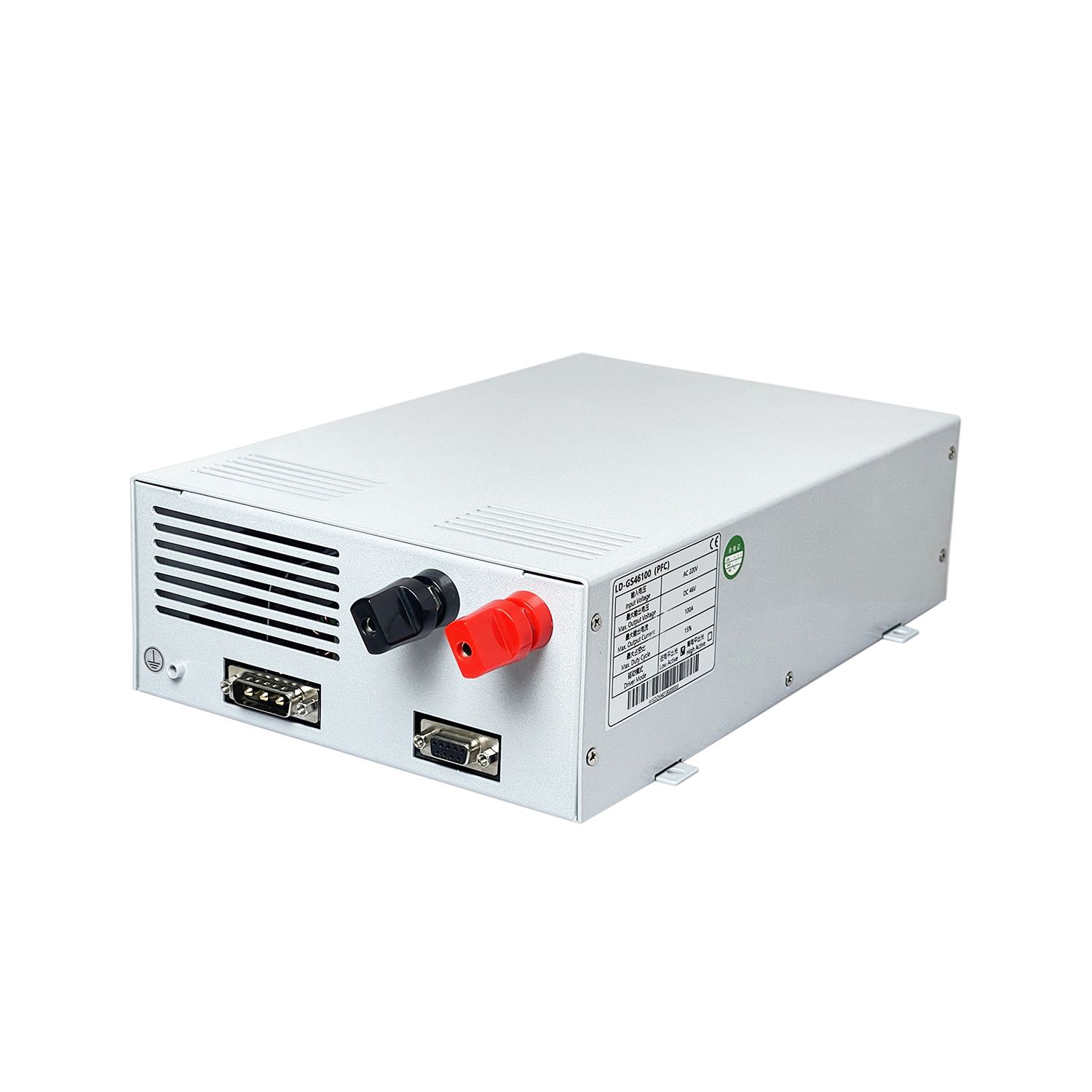

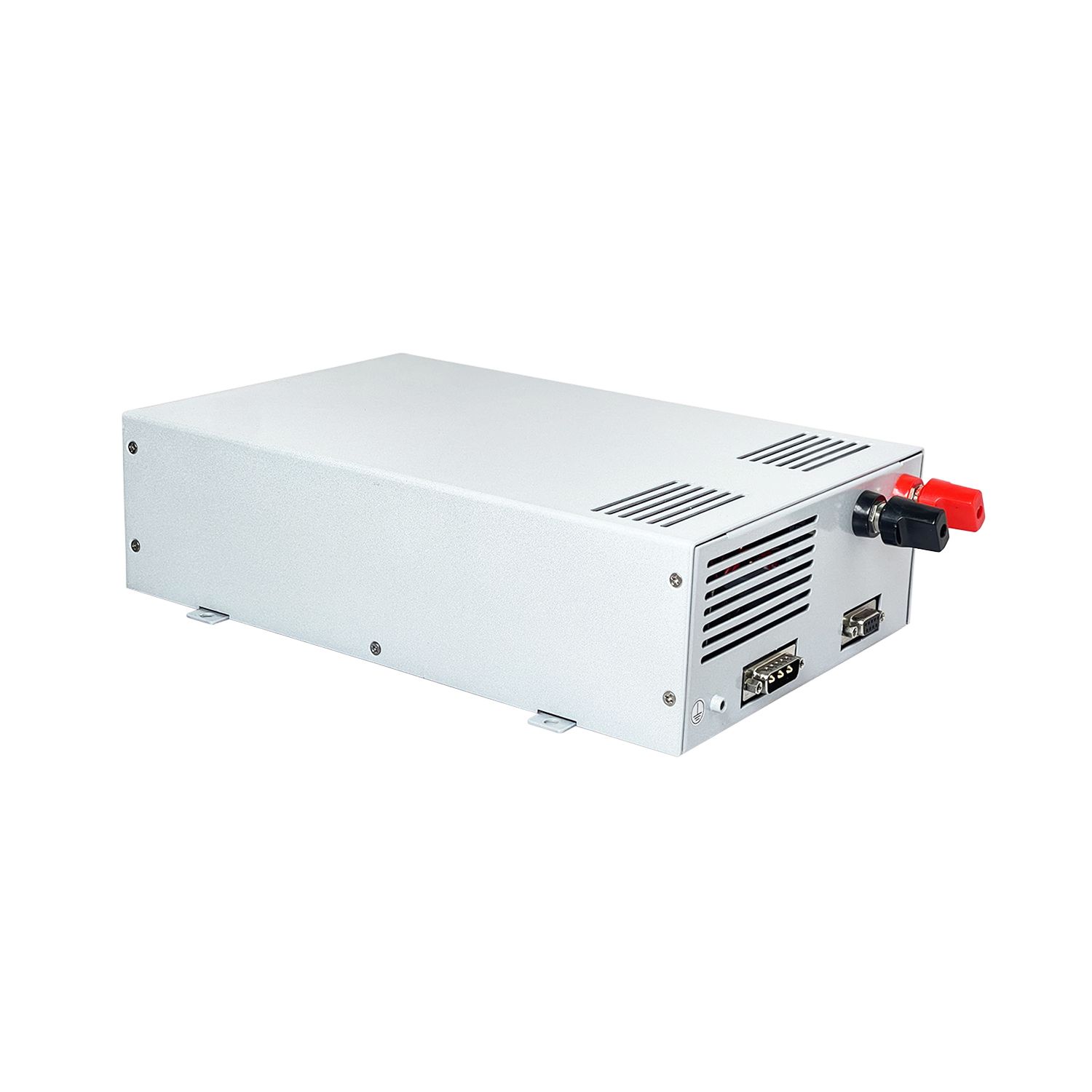

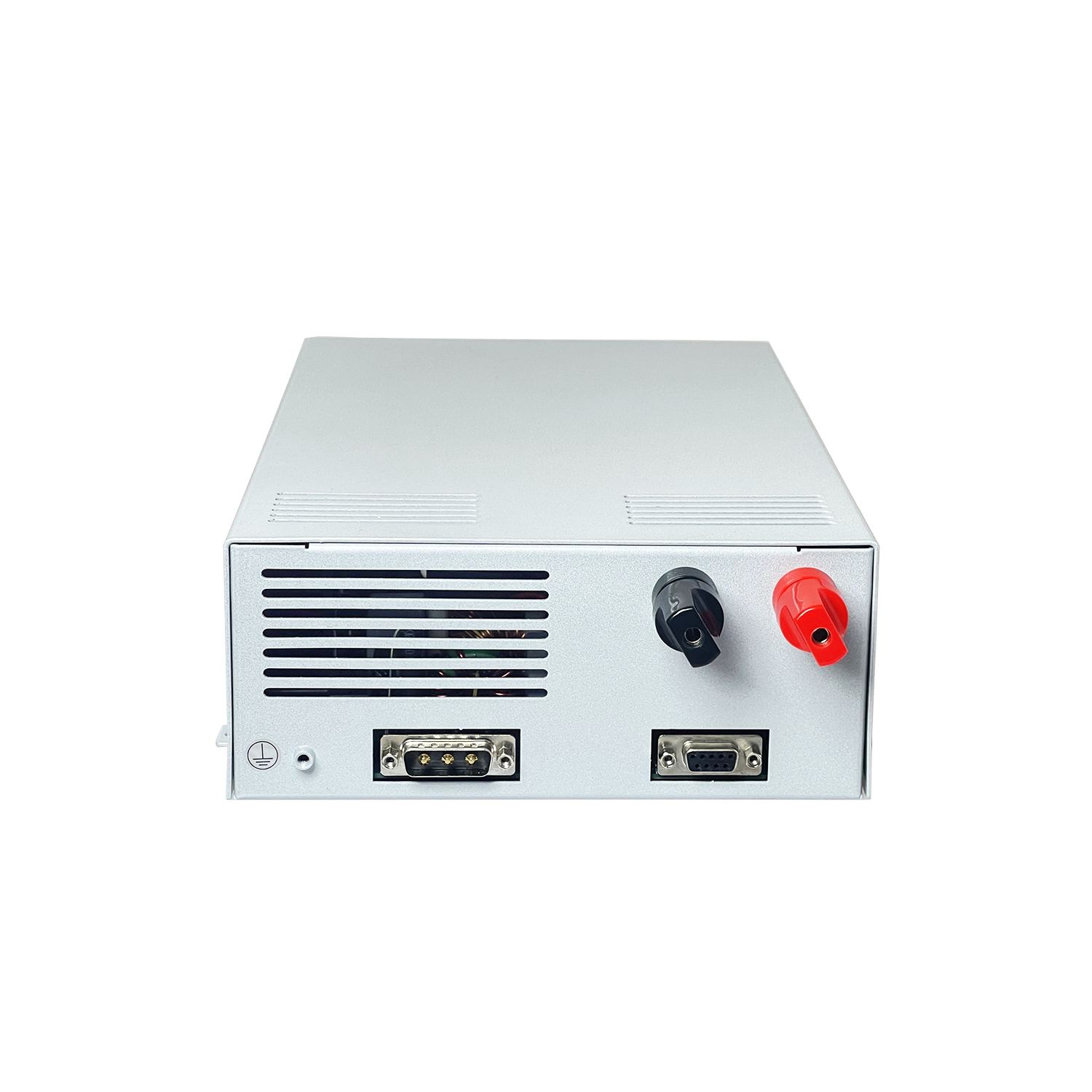

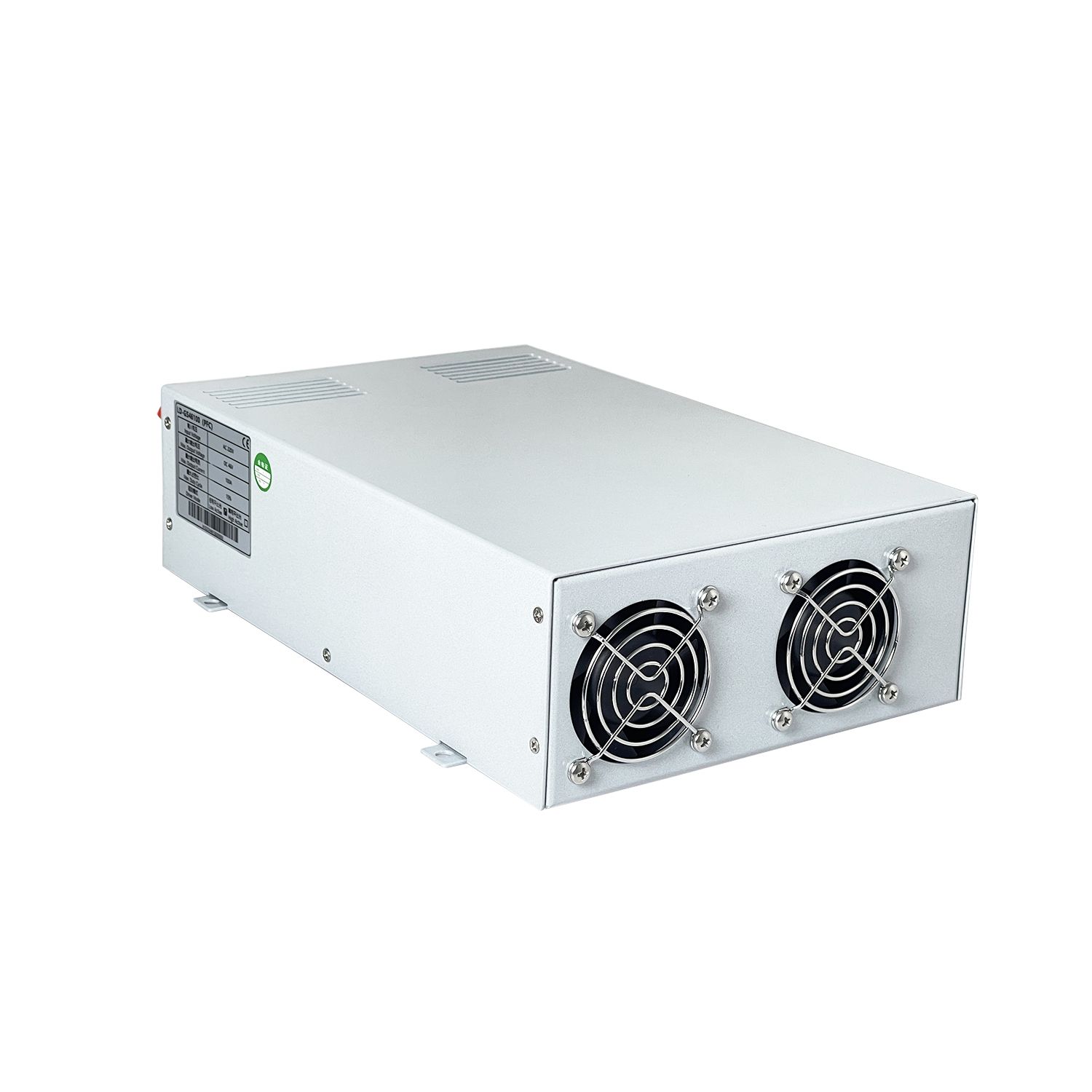

100A46V PFC
1. Customizable high or low level control signal output.2. Input 5V analog control voltage corresponding to 100A current outp
Product features
1. Customizable high or low level control signal output.
2. Input 5V analog control voltage corresponding to 100A current output.
3. The current control signal comes with a 5V limit function.
4. Overcurrent protection, overvoltage protection, and high temperature protection.
5. Equipped with power factor correction function.
Detailed Description
Product features
1. Customizable high or low level control signal output.
2. Input 5V analog control voltage corresponding to 100A current output.
3. The current control signal comes with a 5V limit function.
4. Overcurrent protection, overvoltage protection, and high temperature protection.
5. Equipped with power factor correction function.
Technical data
| Model | 100A46V PFC |
| Input Voltage | 220VAC (±10%) |
| Output Voltage | 26~46VDC |
| Output Current | 20~ 100A |
| Output Power | Maximum 4600W |
| Number of bars | 14~24 |
| Laser Power | 1400~2400W |
| Output current Duty cycle | Maximum 20% |
| Circuit Protection | 102A |
| Size (L x W x H) | 328mm x 205mm x 80mm |
| Weight | 3.35kg |
