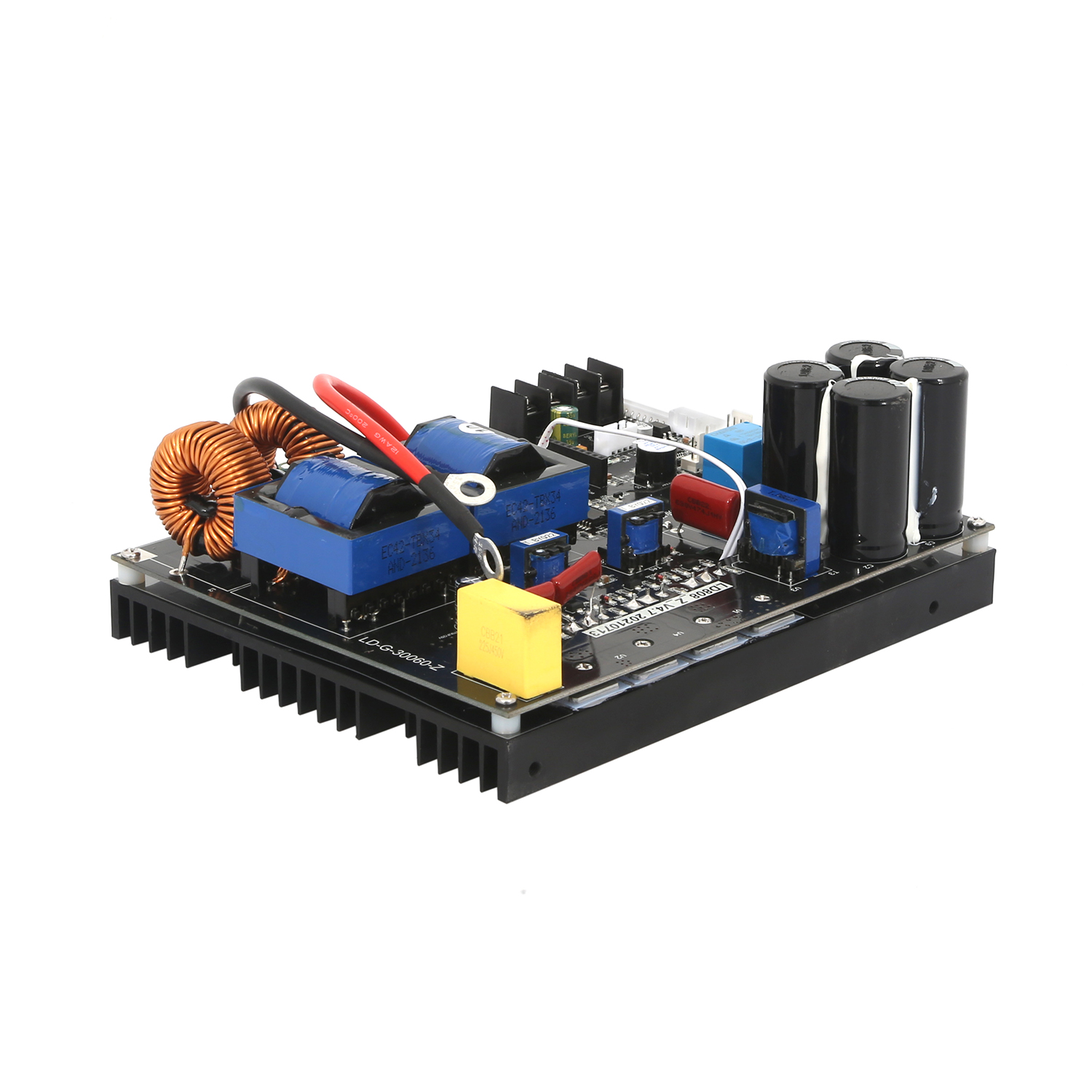

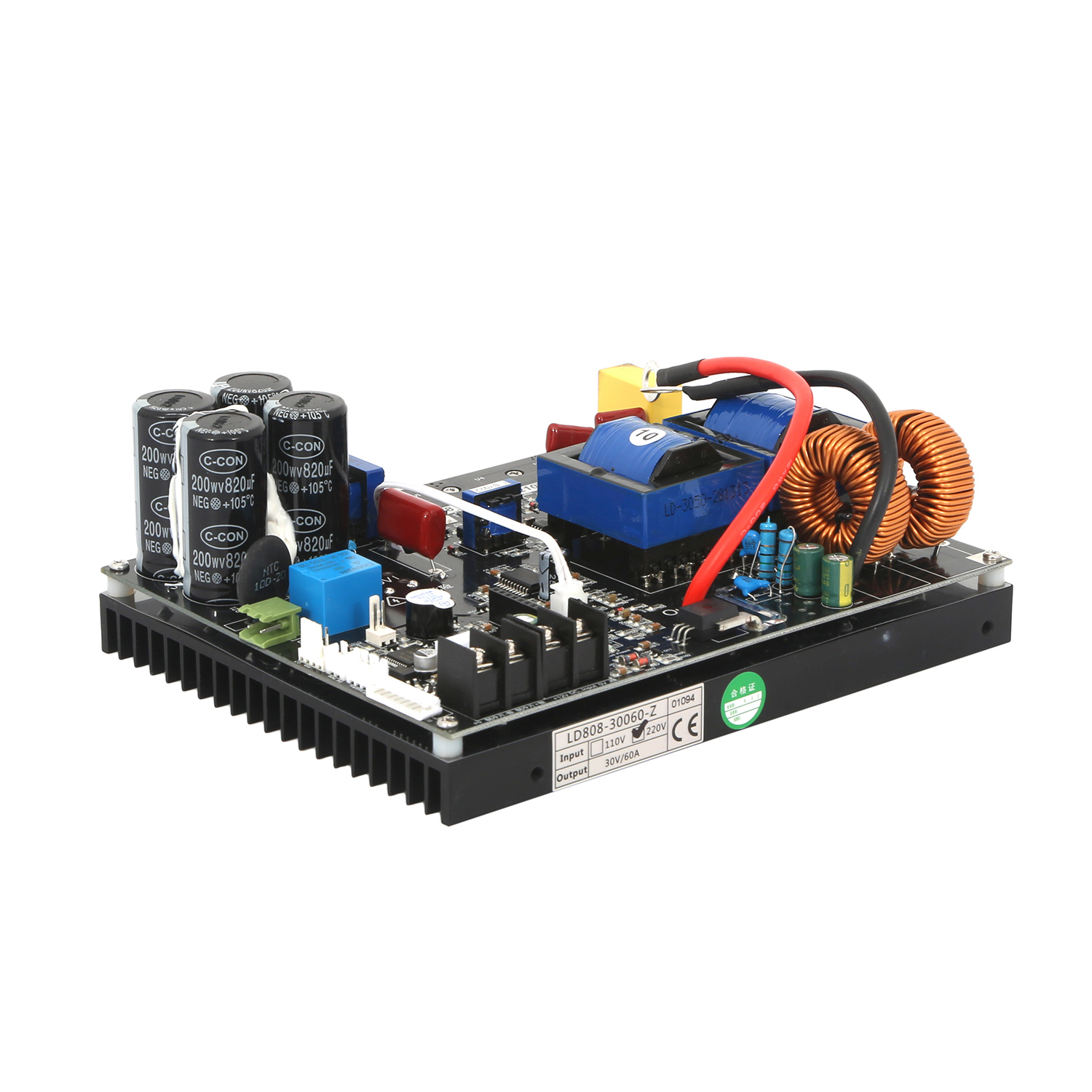

60A30V - base plate
Full bridge power supply, Efficient and stable, can work for a long time
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Detailed Description
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Technical data
| Model | LD-G-30060-Z / LD-W-30060-Z |
| Input Voltage | G--220V / W--110V AC 50Hz(±10%) + DC12V/150W |
| Output Voltage | 5.9~30V |
| Output Current | 0~60A |
| Output Power | Maximum 1800W |
| Number of bars | 3~15 |
| Laser Power | 180~900W |
| Output current Duty cycle | Maximum 40% |
| Circuit Protection | Overvoltage protection, overcurrent protection, temperature protection |
| Size (L x W x H) | 192*152*72mm |
| Weight | 1.4kg |
