100A Power Supply
Simple and convenient wiring, and cost-effective
Overview
| Image/Model |
|---|

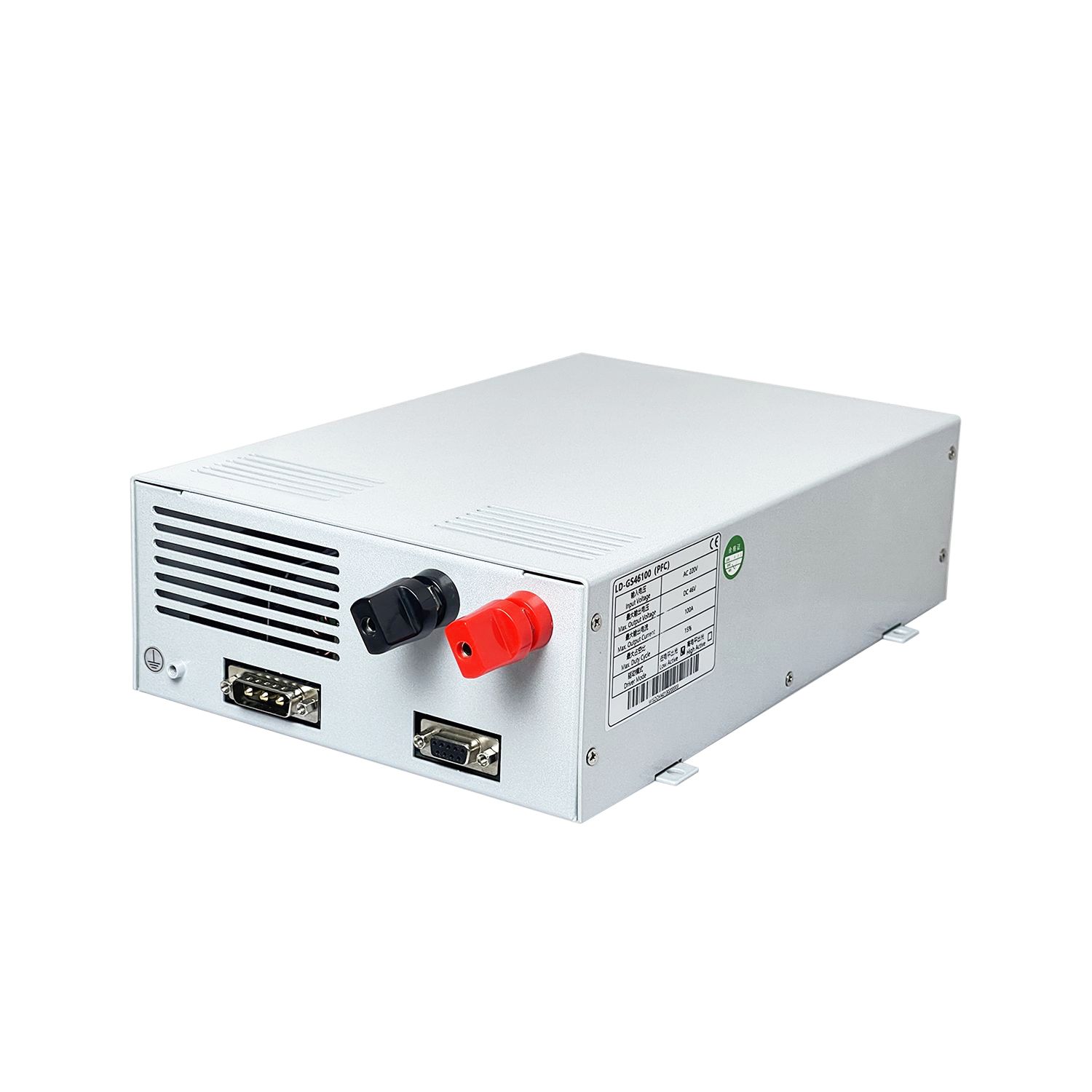

100A46V PFC |
100A46V frosted alum |
100A36V stainless st |
100A32V frosted alum |
100A26V frosted alum |
100A24V black housin |
100A15V |
| Model | Input Voltage |
Output Voltage |
Output Current |
Output Power |
Number of bars |
Laser Power |
Output current Duty cycle |
Circuit Protection |
Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 100A46V PFC | 220VAC (±10%) | 26~46VDC | 20~ 100A | Maximum 4600W | 14~24 | 1400~2400W | Maximum 20% | 102A | 328mm x 205mm x 80mm | 3.35kg |
| LD-GS46100 / LD-WS46100 | G--220V / W--110V AC 50Hz(±10%) | 33.2~46V | 0~100A | Maximum 4600W | 18~24 | 1800~2400W | Maximum 20% | Over current protection, temperature protection | 324.2*183*103.6mm | 5.7kg |
| LD-GS32100 / LD-WS32100 | G--220V / W--110V AC 50Hz(±10%) | 15~32V | 0~100A | Maximum 3200W | 8~16 | 800~1600W | Maximum 20% | Over current protection, temperature protection | 324.2*183*103.6mm | 5.1kg |
| LD-GL26100 / LD-WL26100 | G--220V / W--110V AC 50Hz(±10%) | 16.8~26V | 0~95A | Maximum 2600W | 8~13 | 800~1300W | Maximum 25% | Over current protection, temperature protection | 322*183*68mm | 2.7kg |
| LD-GS24100 / LD-WS24100 | G--220V / W--110V AC 50Hz(±10%) | 12~24V | 11.2~100A | Maximum 2400W | 6~12 | 600~1200W | Maximum 100% | Over current protection, temperature protection | 280.1*157*82mm | 2.56kg |
